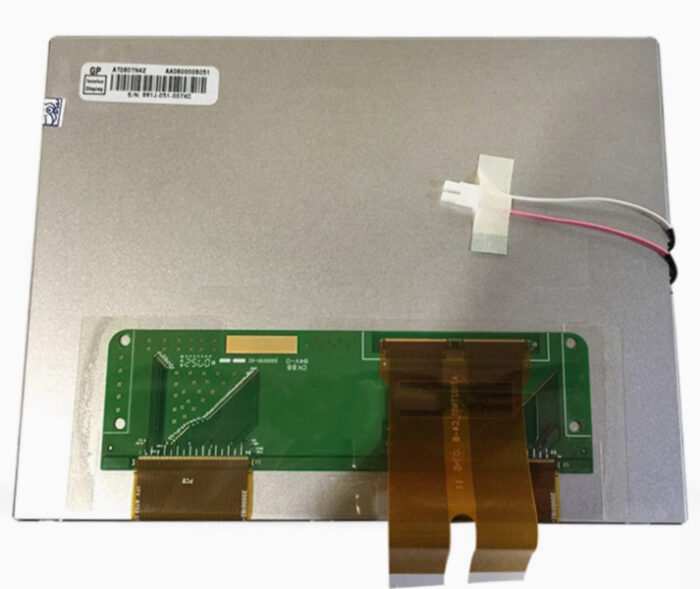

AT080TN42 Innolux LCD panel replacement
$27,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
INNOLUX |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | AT080TN42 8.0″ a-Si TFT-LCD Panel for INNOLUX |
| Brand: | INNOLUX |
| Panel model: | AT080TN42 |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 8.0″ |
| Resolution: | 800(RGB)×600 (SVGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 500 : 1 (Typ.) (Transmissive) |
| Surface: | Antiglare |
| Brightness: | 250 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR?10) (L/R/U/D) |
| Lamp Type: | WLED |
| Signal Interface: | Parallel RGB (1 ch, 6-bit) |
| Input Voltage: | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Response Time: | 10/15 (Typ.)(Tr/Td) (ms) |
