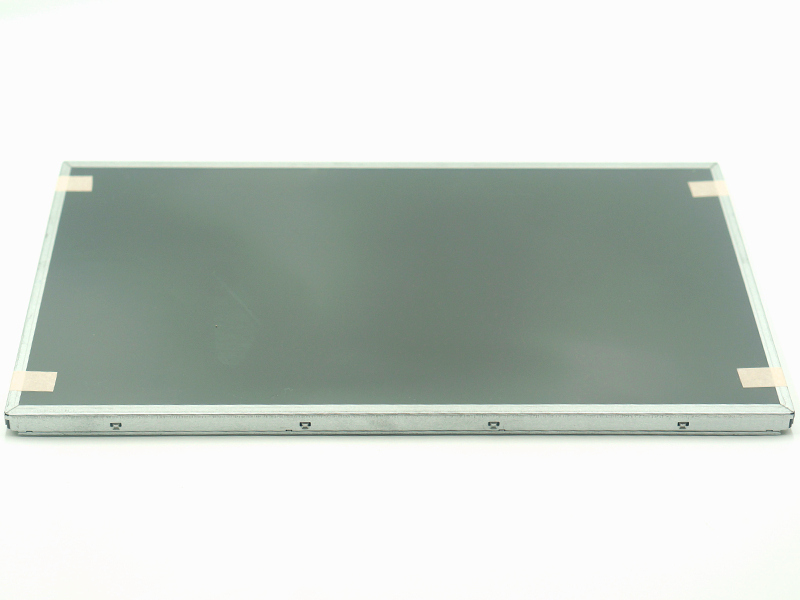

LTM220MT05 Samsung LCD panel replacement
$86,00
| Weight | 4 kg |
|---|---|
| MPN | |
| Brand |
SAMSUNG |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | LTM220MT05 22.0″ a-Si TFT-LCD Panel for SAMSUNG,used |
| Brand: | SAMSUNG |
| Panel model: | LTM220MT05 |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 22.0″ |
| Resolution: | 1680(RGB)×1050 (WSXGA+) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 1000 : 1 (Typ.) (Transmissive) |
| Surface: | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness: | 250 cd/m2 (Typ.) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | CCFL |
| Signal Interface: | LVDS (2 ch, 8-bit) |
| Input Voltage: | 5.0V (Typ.) |
| Response Time: | 5 (Typ.)(Tr+Td) (ms) |
