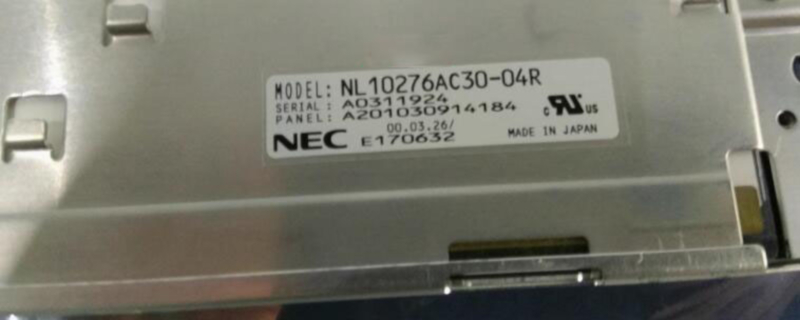

NL10276AC30-04R NLT LCD panel replacement
$109,00
| Weight | 1,5 kg |
|---|---|
| MPN | |
| Brand |
NEC |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | NL10276AC30-04R 15.0″ a-Si TFT-LCD Panel for NEC Used |
| Brand: | NEC |
| Panel model: | NL10276AC30-04R |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 15.0″ |
| Resolution: | 1024(RGB)×768 (XGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 200 : 1 (Typ.) (Transmissive) |
| Surface: | Antireflection |
| Brightness: | 200 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 60/60/40/50 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | CCFL |
| Signal Interface: | LVDS (1 ch, 6-bit) |
| Input Voltage: | 5.0V (Typ.) |
| Response Time: | 15/40 (Typ.)(Tr/Td) (ms) |
