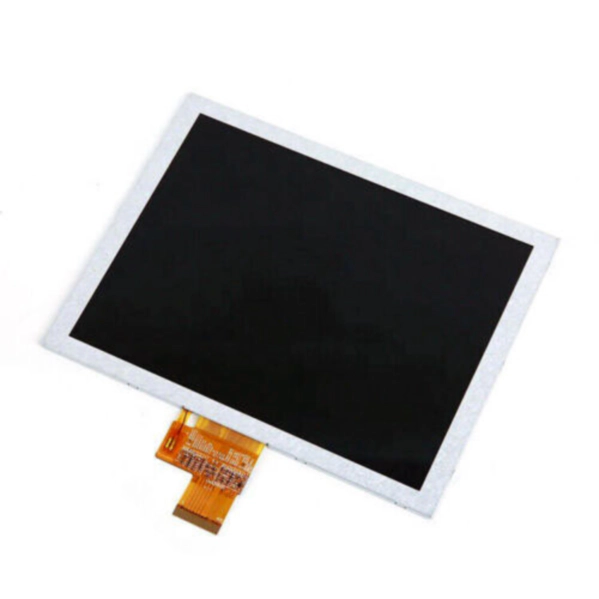

TM080TDHG01-42 8″ 1024¡Á768 LCD Panel for Tianma
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Tianma |
| Resolution | |
| Lcd Size |
Description
| Brand: | Tianma |
| Panel Size: | 8 |
| Resolution: | 1024¡Á768 |
| Backlighting: | WLED |
| Interface: | LVDS |
| Surface: | Clear |
| Brightness: | 400 |
| Frequency: | 60Hz |
| Active Area: | 162.048¡Á121.536 |
| TN/VA/IPS: | TN |
| C/R: | 1000:1 |
| View Angle: | 80/80/80/80 |
| Colors: | 262K/16.7M |
| Typ. Depth: | 3.4mm |
| Max. Depth: | 3.7mm |
| Pins: | 40 pins |
| Work Temp.: | -20~70¡ãC |
| Storage Temp.: | -30~80¡ãC |
| Outline Size: | 183¡Á141 |
