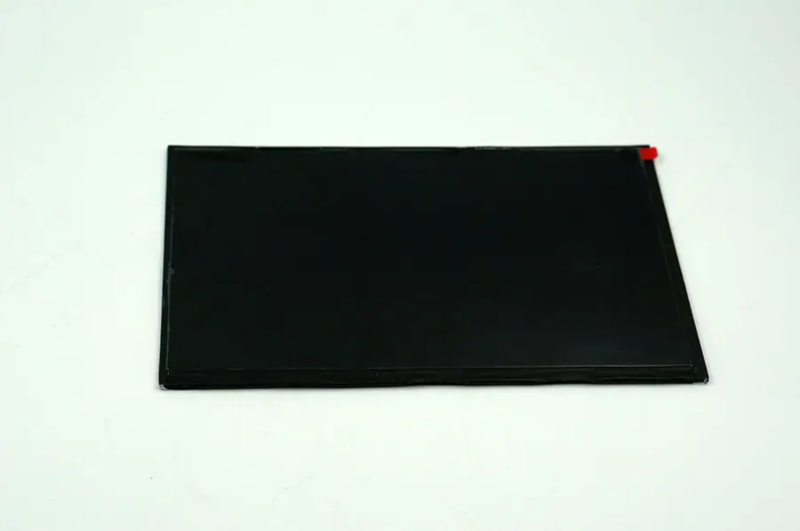

TV101WXM-NP1 BOE LCD panel replacement
$45,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
BOE |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | TV101WXM-NP1 10.1″ a-Si TFT-LCD Panel for BOE with EDP connector, without touch screen |
| Brand: | BOE |
| Panel model: | TV101WXM-NP1 |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 10.1 |
| Resolution: | 1280(RGB)×800 , WXGA |
| Display Mode: | ADS, Normally Black, Transmissive |
| Contrast Ratio: | 800:1 (Typ.) |
| Surface: | Glare (Haze 0%), Hard coating |
| Brightness: | 250 cd/m? (Typ.) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 49% |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Embedded (LED Driver) |
| Signal Interface: | eDP (1 Lane) , 30 pins |
| Input Voltage: | 3.3V (Typ.) |
| RoHS: | RoHS Compliance |
| Active Area: | 216.96×135.6 mm |
| Outline: | 228.3×149.05×4.4 mm |
| Application: | PAD |
| Response Time: | 30 (Typ.)(Tr+Td) |
