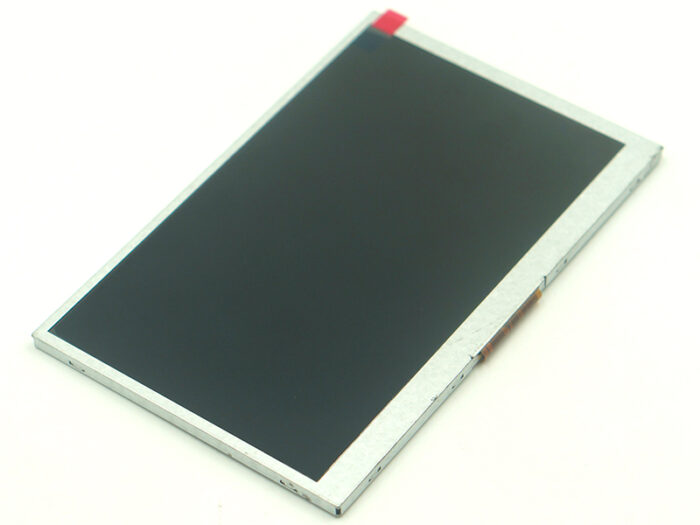

ZJ070NA-01P Innolux LCD panel replacement for Automotive Display
$32,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
CHIMEI INNOLUX |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | ZJ070NA-01P 7.0″ a-Si TFT-LCD Panel for CHIMEI INNOLUX |
| Brand: | CHIMEI INNOLUX |
| Panel model: | ZJ070NA-01P |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 7.0″ |
| Resolution: | 1024(RGB)×600 (WSVGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) |
| Surface: | Glare (Haze 0%) |
| Brightness: | 500 cd/m2 (Typ.) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) |
| Viewing Angle: | 75/75/70/75 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | LVDS (1 ch, 6/8-bit) |
| Input Voltage: | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| Response Time: | 10/15 (Typ.)(Tr/Td) (ms) |
